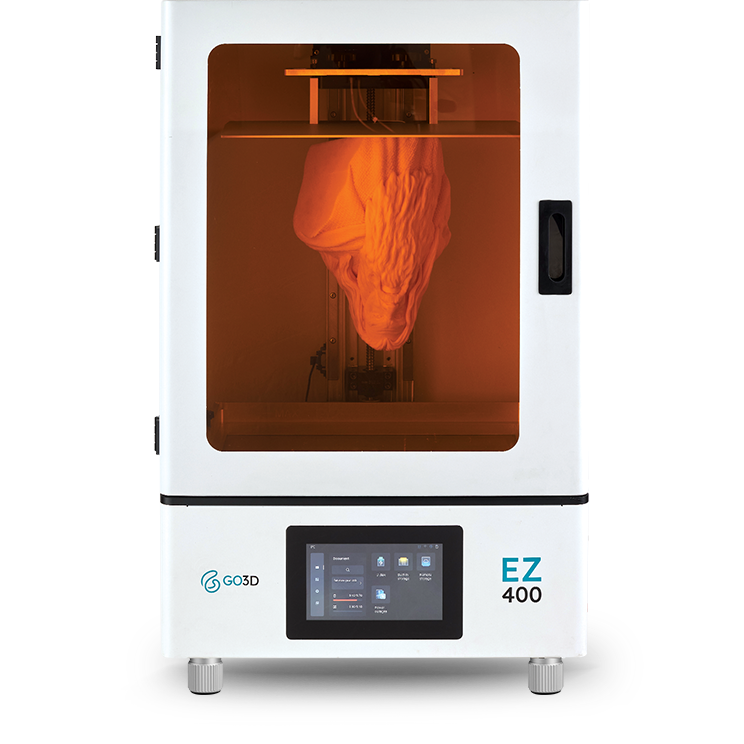

EZ 400
Built for Bigger
Possibilities
From fine details to full-scale builds, EZ 400 delivers unmatched precision and reliability, making it a go-to solution for large, demanding print jobs, empowering you to solve big problems with big parts.
Request Quote
Intelligent Features
Greater Productivity
Automated Resin Recovery System
Simplifies handling and makes cleanup effortless

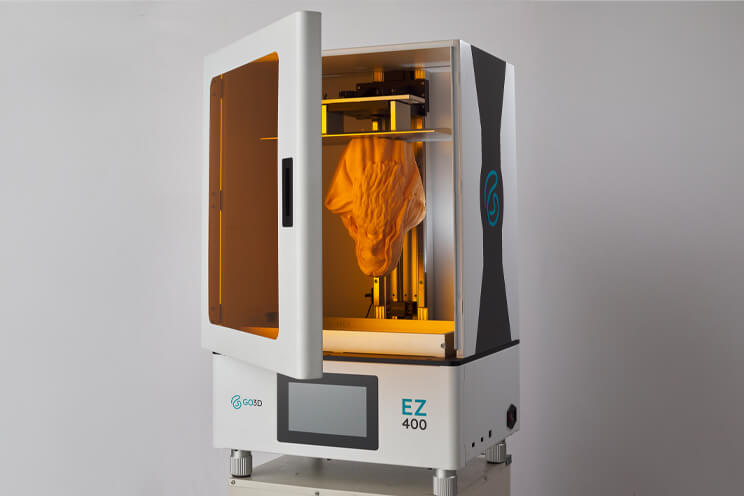

Extended Build Volume for Large Parts
Supports large-format printing to produce bigger parts
Large 16” 8K Monochrome Display
Provides ultra-sharp resolution for exceptional detail and print accuracy

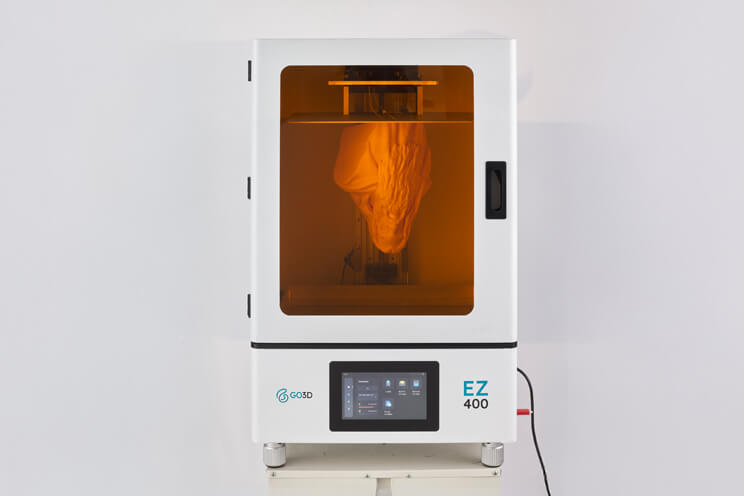

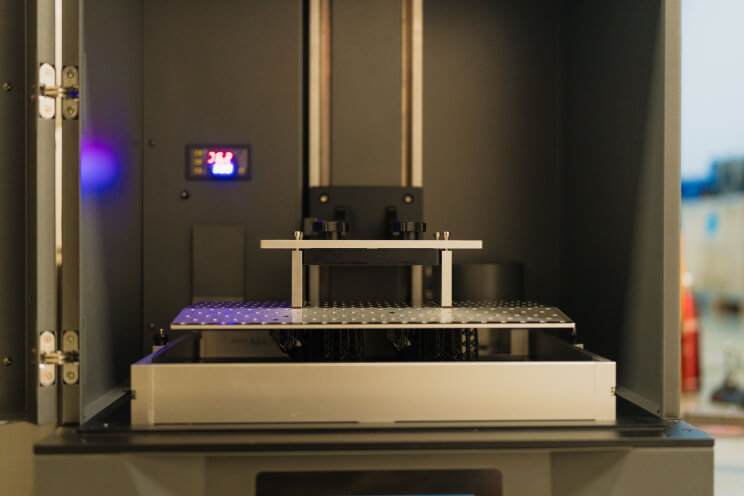

Rigid All-Metal Chassis for Industrial-Grade Durability
Built with a solid all-metal frame to withstand rigorous usage
Powerfully Precise
Consistently Brilliant
Printer Properties
| Build volume | 353 X 198 X 400 mm |
|---|---|
| Panel | 16-inch 8K screen |
| XY Resolution | 7680 X 4320 |
| Z Resolution | 10 μm |
| Print speed | Up to 400 layers/ hour |
| Optical evenness | Uniform intensity >95% area |
| Layer height | 0.025 mm to 0.1 mm |
| Z-axis movement | Double guide rail, ball screw integrated system |
| Outer body material | Fully metal body, sheet metal + Metal VMC machining parts |
| Printer control | 7" HD Touch Screen |
| Design | Integrated metal structure with VMC-processed parts |
| Sensor | Optical Sensor (Z-Axis End switch) |
| Input | USB, Ethernet |
| Supported material | Open system, supports all 405 nm resins |
| File types | STL, OBJ, AMF |
Features

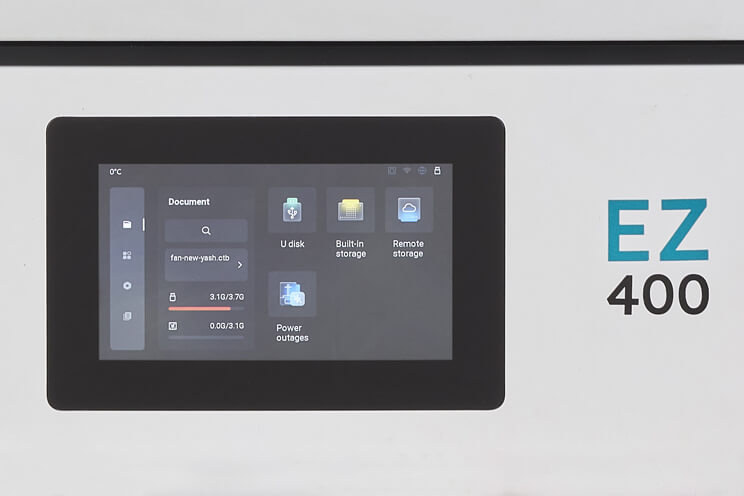

7” HD Touchscreen UI
Offers an intuitive, high-definition interface for seamless printer control
Intelligent Print Resume After Interruption
Continues printing automatically after any pause or outage
Open Material System – Compatible with 3rd Party Resins
Works with a wide range of resins from different brands, giving more choices and flexibility
Advanced Optical System with >95% Light Evenness
Ensures light spreads evenly across the build area for smooth, consistent prints every time
Applications
- Castable Jewellery
- Dental Aids
- Art & Models
- Prototyping
- Education
