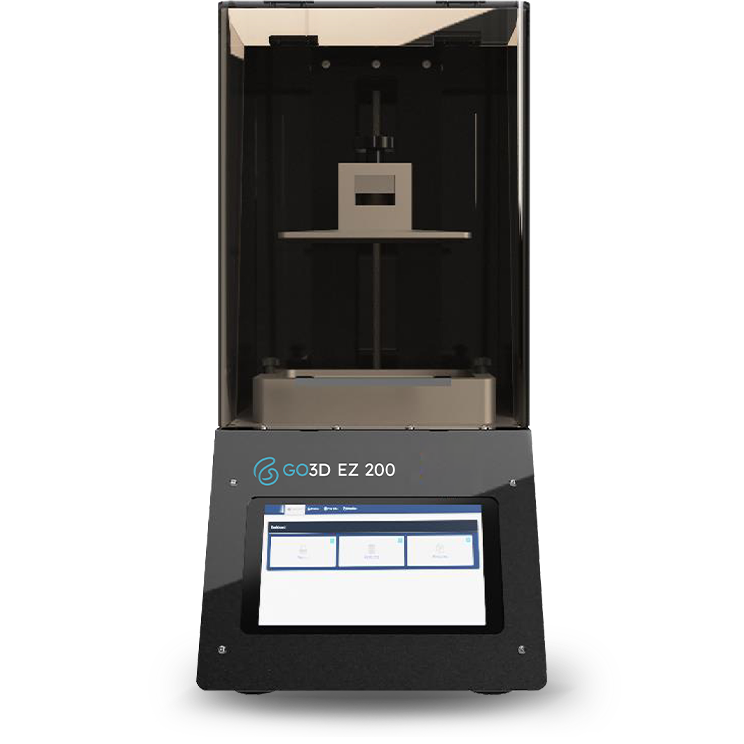

EZ 200
Stable Performance
Exceptional Results
Designed for precision printing, the EZ 200 is equipped with dual miniature linear rails and a reinforced Z-axis to ensure smooth, stable movement, consistent layering, and superior print quality every time.
Request Quote
Intelligent Features
Exceptional Prints

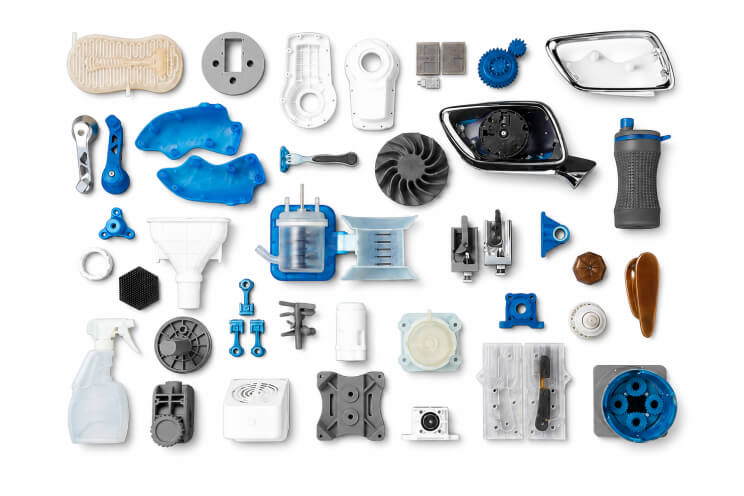

Open Material System
Compatible with any 405 nm UV resin, giving you the freedom to print beyond a single material ecosystem.

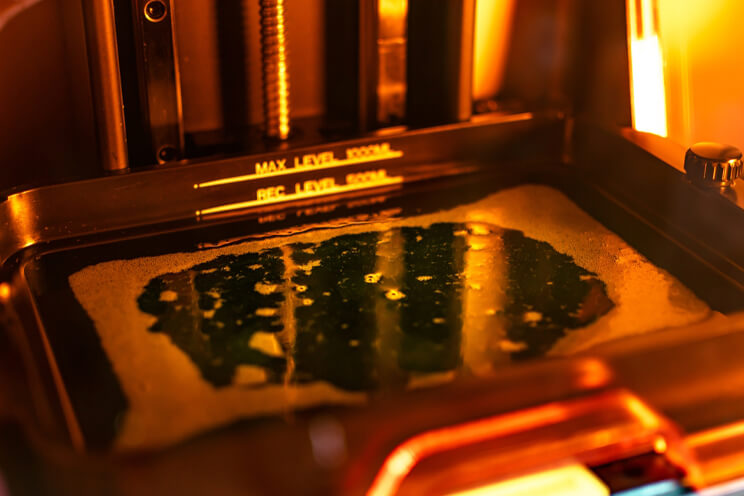

Automated Resin Recovery System
Simplifies handling and makes cleanup effortless

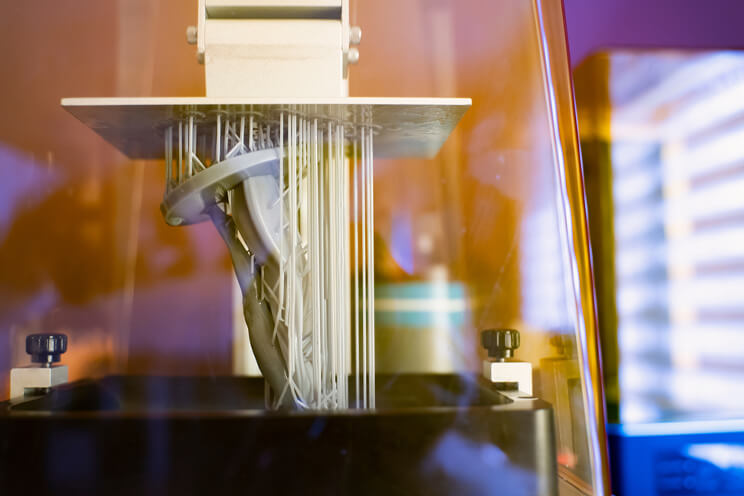

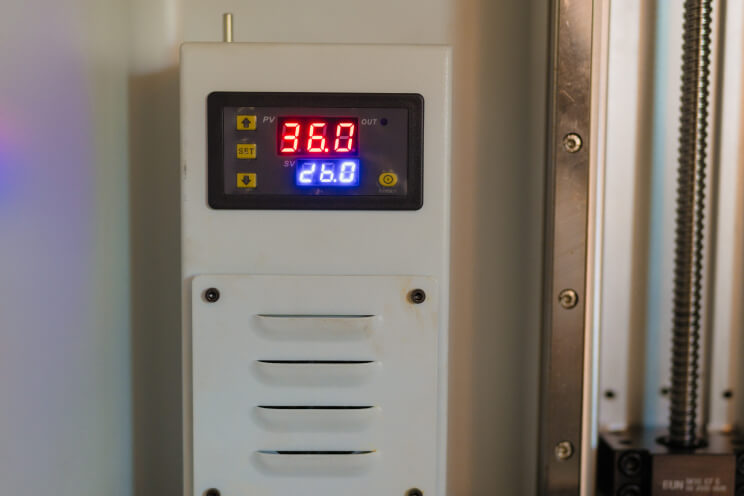

Intelligent Thermally Regulated Chamber
Maintains optimal temperature conditions to ensure consistent print quality

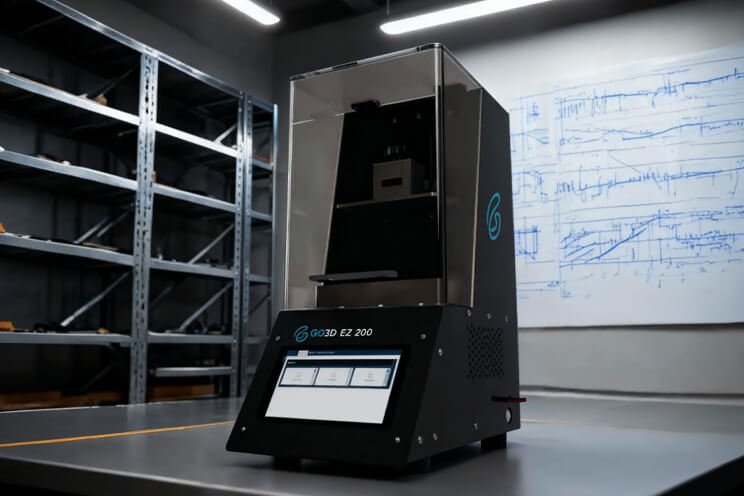

Rigid All-Metal Chassis for Industrial-Grade Durability
Built with a solid all-metal frame to withstand rigorous usage
Fine Detail
Smooth Execution
Printer Properties
| Build volume | 153 X 78 X 150 mm |
|---|---|
| Panel | 9K monochrome LCD |
| XY Resolution | 18 μm |
| Z Resolution | 10 μm |
| Print speed | 30 - 60 mm/hr (Z axis) |
| Optical evenness | Uniform intensity >95% area |
| Layer height | 0.025 - 0.1 mm |
| Z-axis movement | Double guide rail, ball screw integrated system |
| Outer body material | Full metal body |
| Printer control | 5” HD touch screen |
| Design | Integrated metal structure with CNC-processed parts |
| Sensor | Optical sensor (Z-axis end switch) |
| Input | USB, Ethernet, WiFi |
| Supported material | Tough, elastic, nylon-like, ABS, castable (all 405nm resins) |
| File types | STL/OBJ supported |
Features
Intelligent Print Resume After Interruption
Continues printing automatically after any pause or outage
Advanced 9K Monochrome LCD Panel
Uses a high-resolution screen that prints faster, lasts longer, and delivers sharper, more detailed models
Open Material System – Compatible with 3rd-Party Resins
Works with a wide range of resins from different brands, giving more choices and flexibility
Advanced Optical System with >95% Light Evenness
Ensures light spreads evenly across the build area for smooth, consistent prints every time.
Applications
- Castable Jewellery
- Dental Aids
- Art & Models
- Prototyping
- Education
